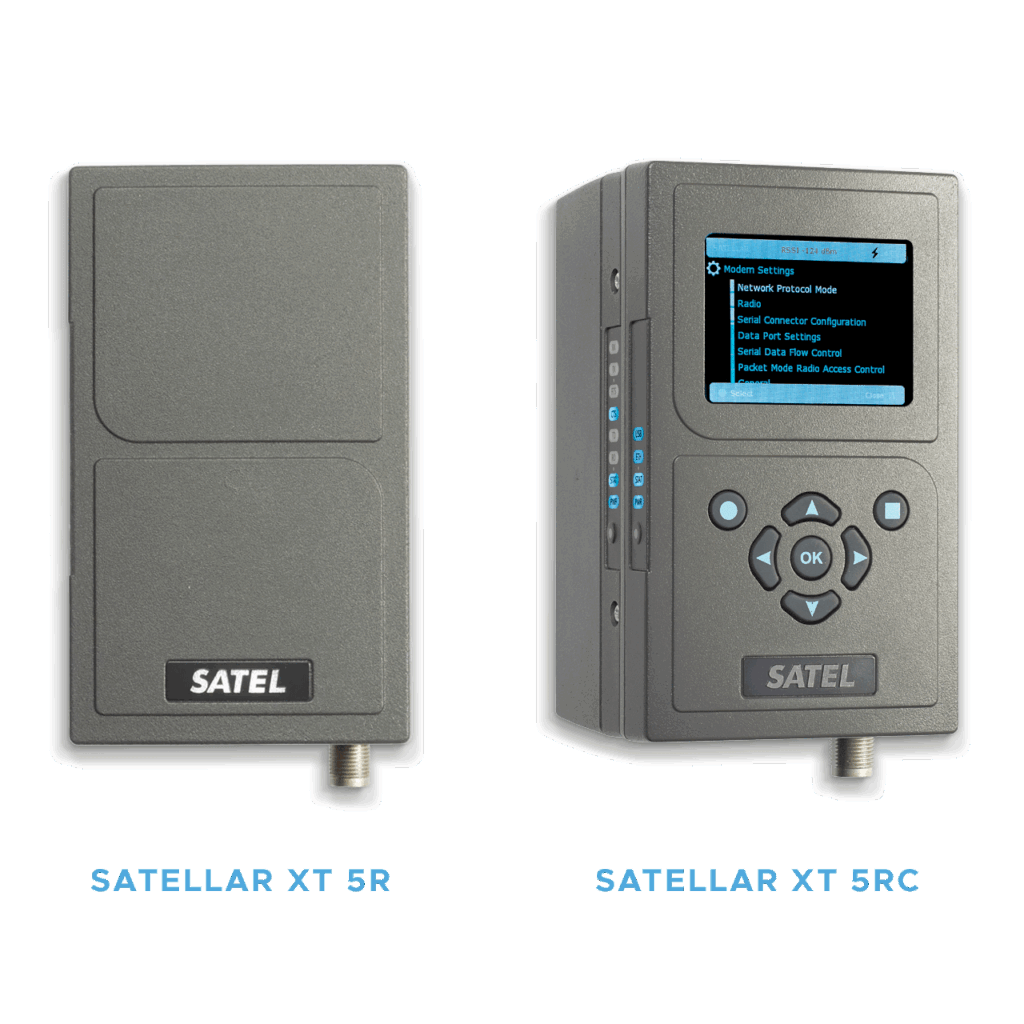

SATELLAR XPRS XT 5R
SATEL XPRS IP radio router, the heart of the SATEL XPRS communications solution, is an excellent choice for data transfer in mission-critical applications requiring long range, security and stability of the private radio network. It provides high available connectivity, with reliable radio technology and switchover functionality.
Redundant routing with other, adjacent, technologies is also provided. In addition to IP communications, support for serial components is ensured by serial modes of operation as well as protocol conversions. With its advanced coding technologies, excellent sensitivity and performance values, the SATEL XPRS IP radio router is the market leader in the spectral efficiency.
| SATELLAR XT 5R | SATELLAR XT 5RC | |
| Interface | RS-232, -422 / -485 | RS-232, -422 / -485, USB, Ethernet |
| Power | 14.4 / 3.8 W – | 15.8 / 5.2 W 16.4 / 5.8 W |
| Size H x W x D / Weight | 130 x 55.5 x 76.5 mm / 680 g | 130 x 77.2 x 76.5 mm / 940 g |
| Channel width | 12.5 / 25 kHz |
| Data speed radio ( max. ) | 60.5 kbps @ 12.5 kHz (64QAM) 121 kbps @ 25 kHz (64QAM) Max.coded |
| TX power (nominal) | 37 dBm (5 W) mean: average 30 dBm (1 W), max 32 dBm (1.5 W) PEP: average 37 dBm (5 W), max 38 dBm (6.6 W) |
| Operating voltage | +12.5 Vdc … +25 Vdc (–15% / +20%) |
| Temperature ranges | -25 …+55 °C complies with the radio standards -30 …+70 °C functional -40 … +85 °C storage |
| Mounting | DIN rail (side or back) Direct on flat surface |
| Radio | EN 300 113 |
| EMC | EN 301 489-1, -5 |
| Safety | IEC 62368-1 |
RX sensitivity (BER 10E-3)
| Air speed | Ch. | Mod. | Sens. (10E-3) |
| 121 kbps | 25 kHz | 64QAM | -101 dBm |
| 60.5 kbps | 12.5 kHz | 64QAM | -104 dBm |
| 80.6 kbps | 25 kHz | 16QAM | -108 dBm |
| 40.3 kbps | 12.5 kHz | 16QAM | -110 dBm |
| 20.2 kbps | 25 kHz | 2QAM | -117 dBm |
| 10.1 kbps | 12.5 kHz | 2QAM | -118 dBm |
MISSION-CRITICAL CONNECTIVITY REQUIREMENTS
- High available, long range connectivity
- Easy and error free deployment
- Integrated serial and IP networking support and conversions
- Protect the legacy investments
- Combine with adjacent technologies:
- Automated switch overs with redundant routing protocols
- Avoid costs of endangered cyber security
EASY CONFIGURATION
- SATEL NETCO DESIGN, network design, configuration and management software
- Web browser based user interface
- SNMP for remote management
- Over-the-air remote management and firmware updating
- Firmware and configuration uploads via USB
- Error free configuration and automated parameter calculation
- Up to 80% savings by reduced deployment time
- Avoid human configuration errors
CYBER SECURITY
- Models with AES-128 / -256 encyption support
- Built-in firewall
- User authentication
- SATEL cyber security auditing procedur
- Data and management network separation
- Secure browser access
